Level of difficulty : ⭐⭐⭐
Average time need : 1 hour ⏳
4 GOOD REASONS
TO DO YOUR OIL CHANGE
To protect moving parts
To reduce friction and wear
To protect the engine from corrosion
To participate in engine cooling
Over the miles, the oil accumulates dirt and becomes less and less efficient and can lead to engine failure if not replaced.
So if you’re getting close to the manufacturer’s recommended mileage limit, or if it’s been almost a year since the oil hasn’t been changed, it’s time to start emptying.

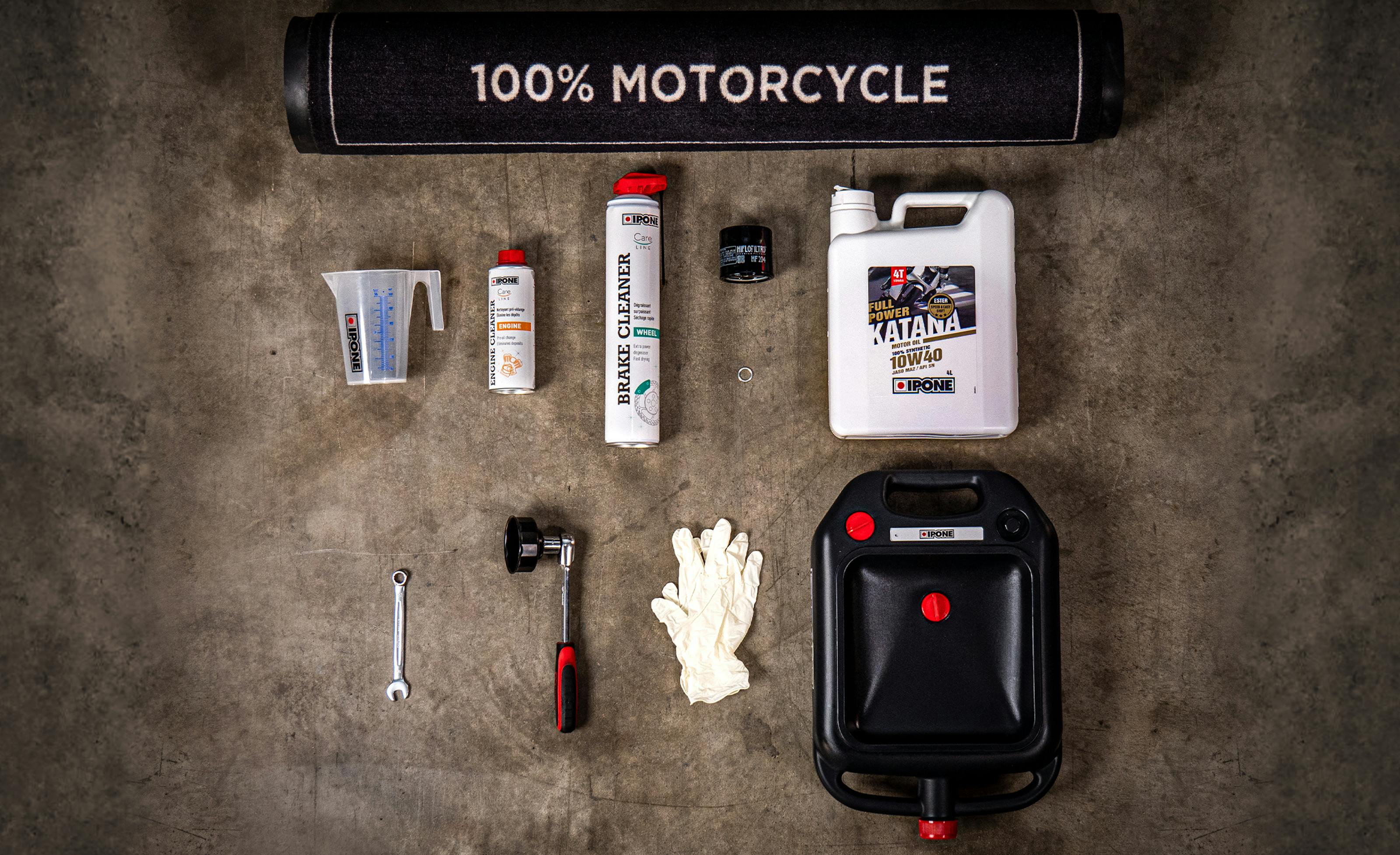

Here's what you need :
List of IPONE's products :
4-Stroke motor oil
Find the best oil for your bike thanks to our lube advisor.
This cleaner to use before emptying removes all deposits and dirt to retrieve the feeling of an original engine.
Degreases all mechanical parts.
The environmental mat
To protect all floors from oil stains.
The drain pan
Practical and ecological., it allows you to easily drain without soiling the floor of your garage!
To carry out dosages accurately and to pour without putting any aside thanks to its spout
Other accessories needed :
- A new oil filter and a new washer
- A tool box with a oil filter wrench
- A cloth
- A pair of surgical gloves
How to change your oil?
First of all, place your bike correctly and then clean the engine (we’ll see how). Finally, put the drain pan under the bike and let's begin!
You will need to follow these steps :
1. Empty the used oil
2. Replace the oil filter
3. Add the new oil

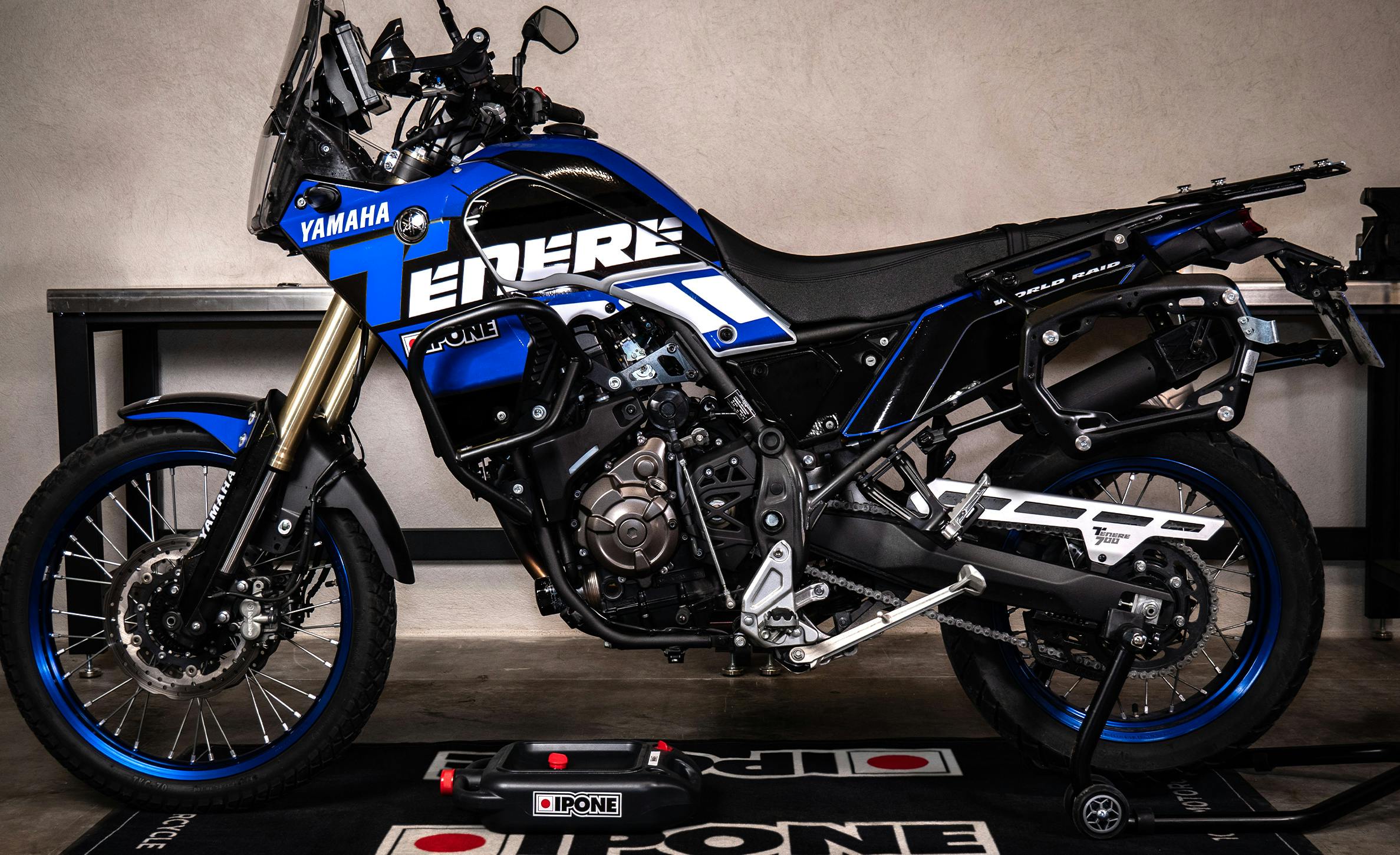

Place your bike
Place your bike on an environmental mat to protect the floor from possible oil stains. Stabilize the bike, position it straight using a stand crutch or the central crutch.
Clean the engine beforehand
Before emptying, we recommend using an engine cleaner, it will eliminate all deposits and clogging. Pour Engine Cleaner into the crankcase up to 10% of your oil capacity when the engine is hot. Turn on the engine and let it idle for approximately 15 minutes.

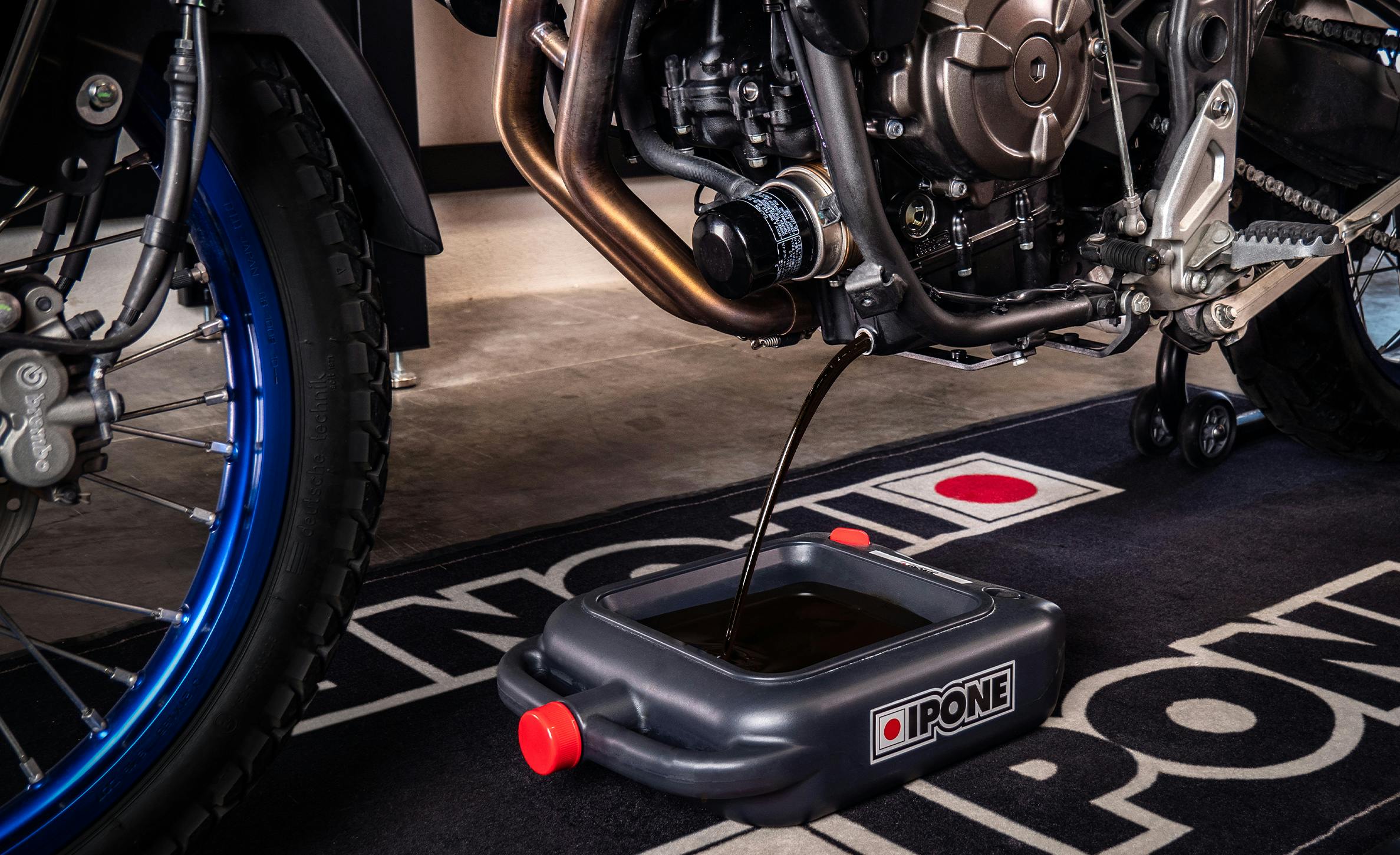

1. DRAIN THE OLD ENGINE OIL
With the drain pan

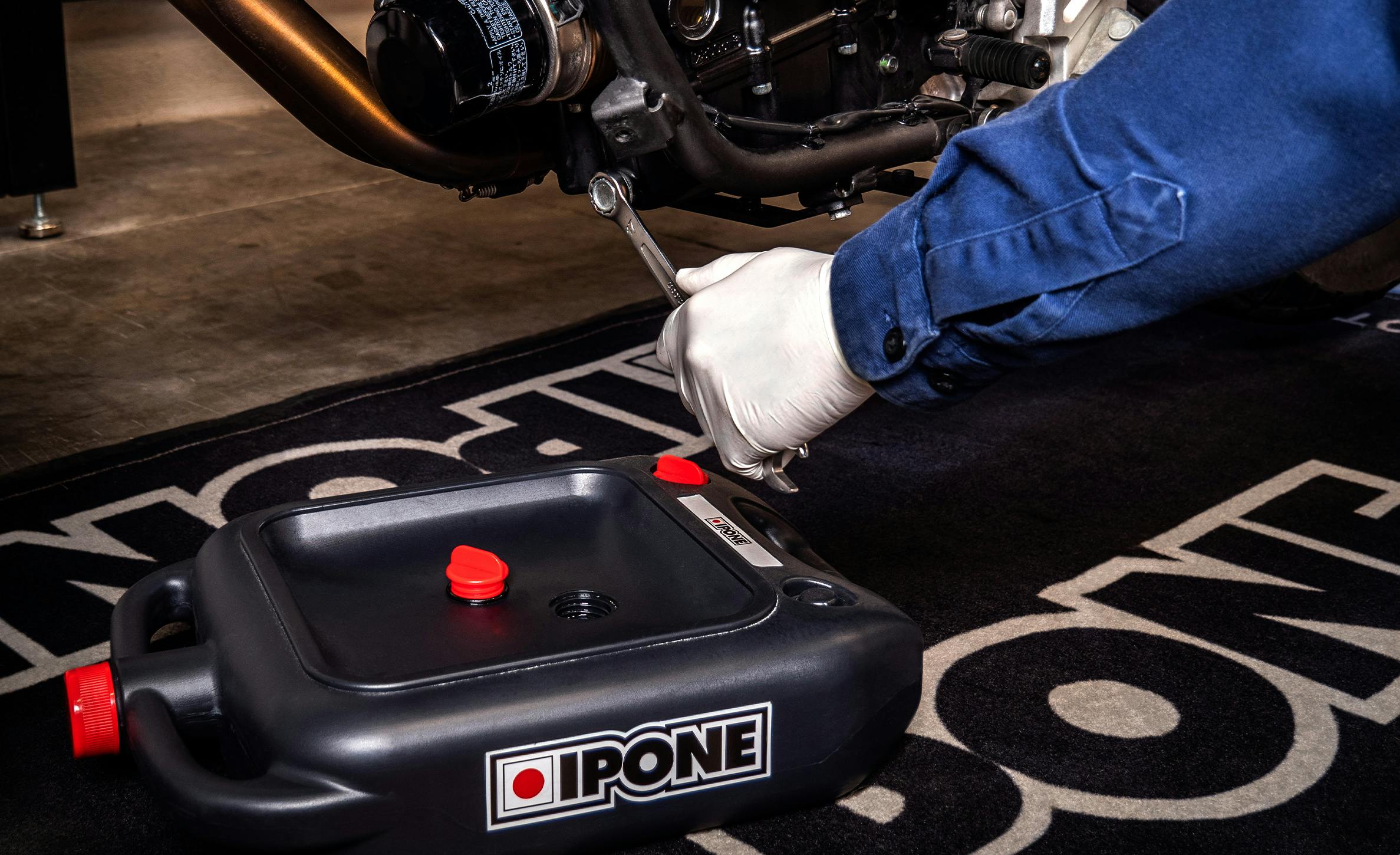

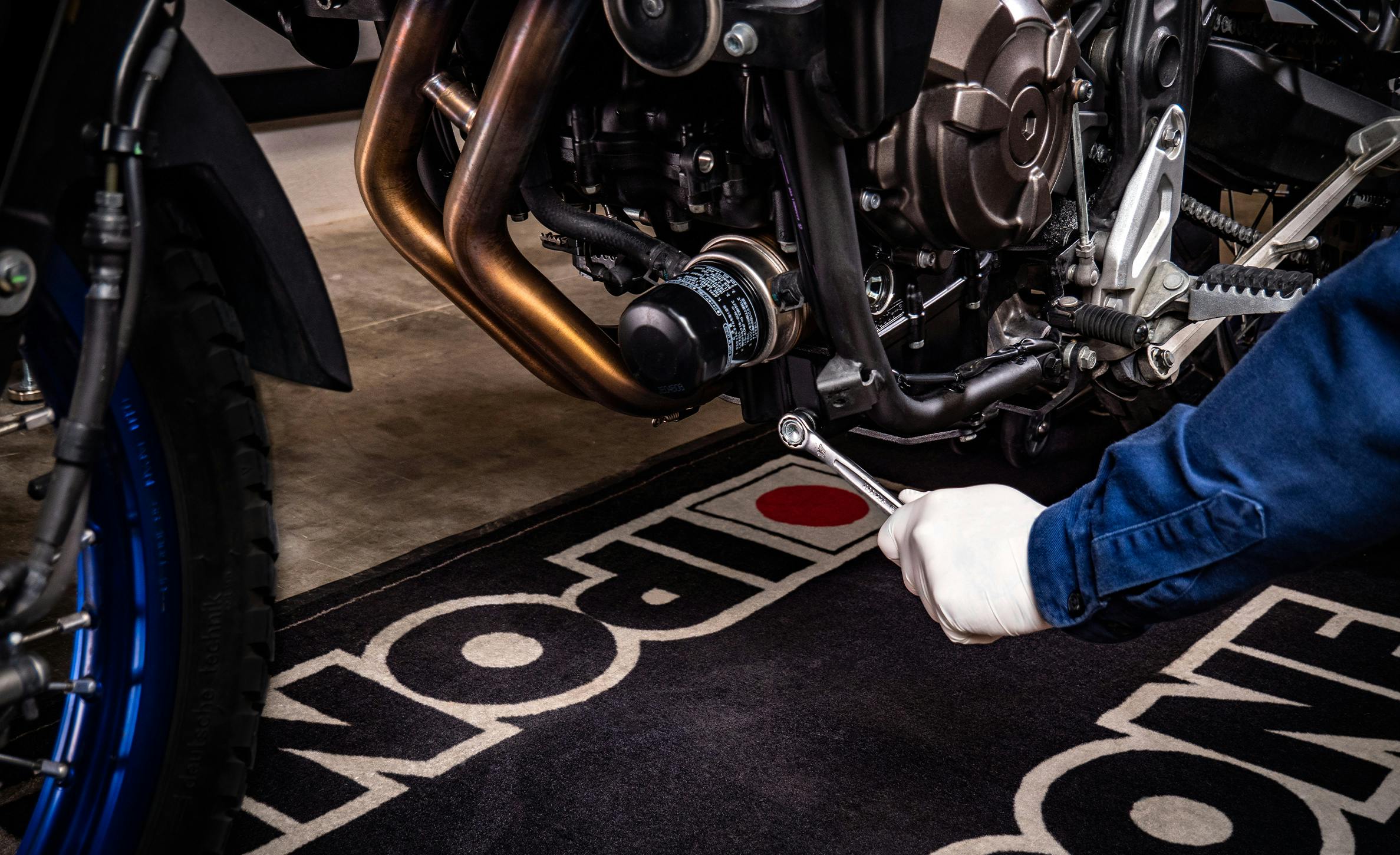

Unscrew the oil filler cap, then the drain plug. Allow all used oil to drain, tilt the bike slightly to the right, on the drain plug's side to empty all the oil.
2. REPLACE THE OIL FILTER

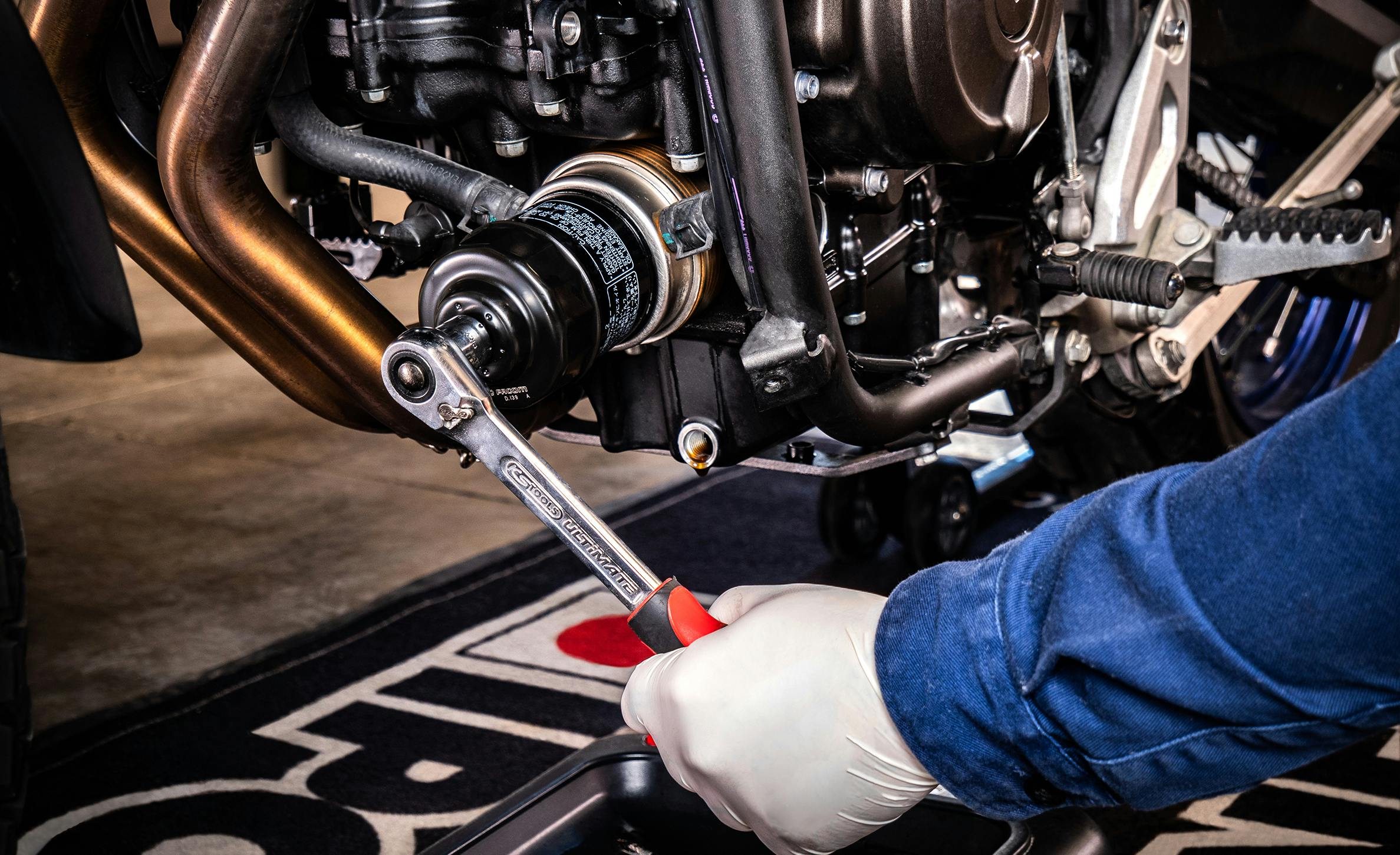

2a. Unscrew the old filter l'ancien filtre
Use an oil filter wrench to unscrew and remove the old oil filter that we are going to replace. Put it in the drain pan.

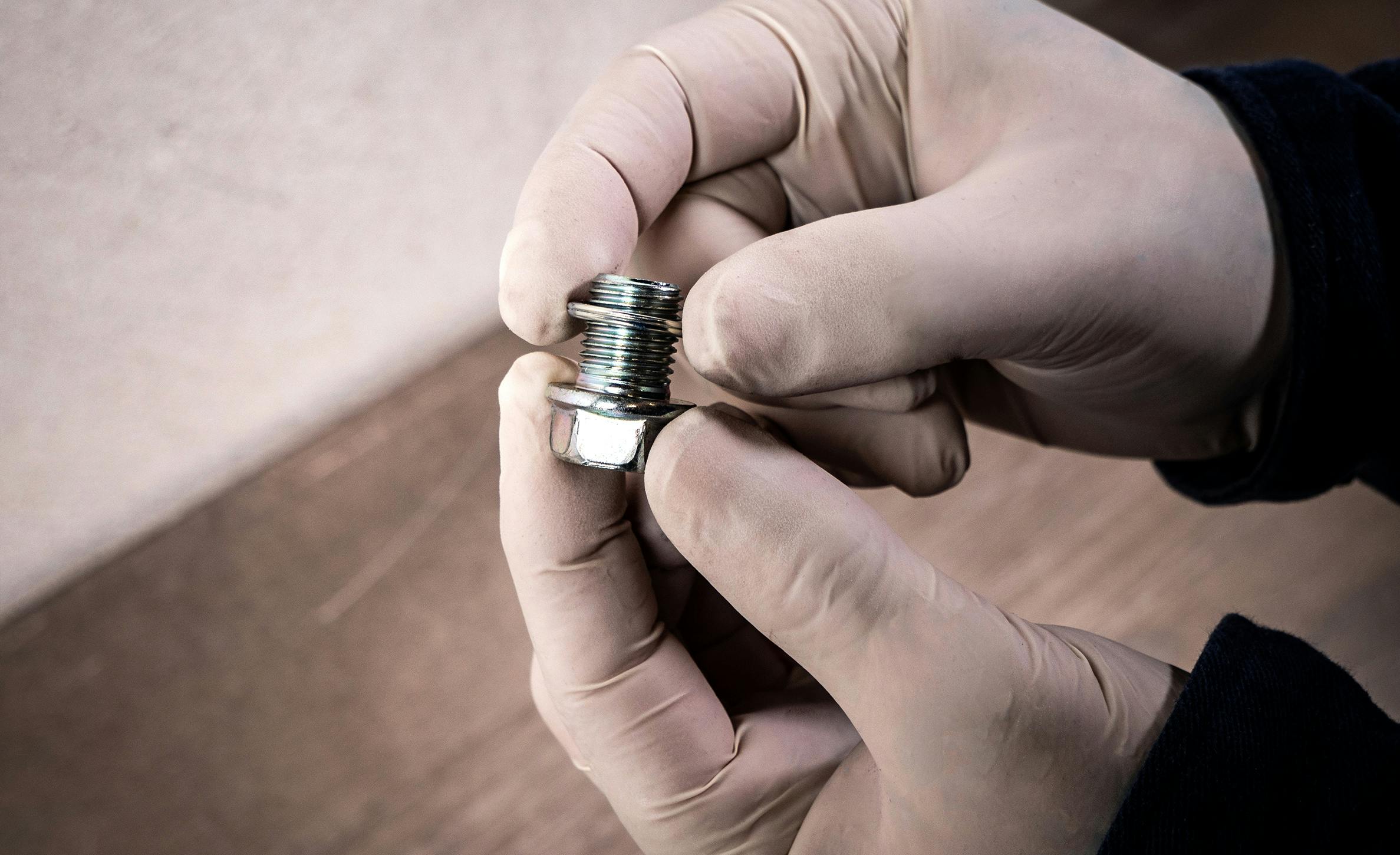

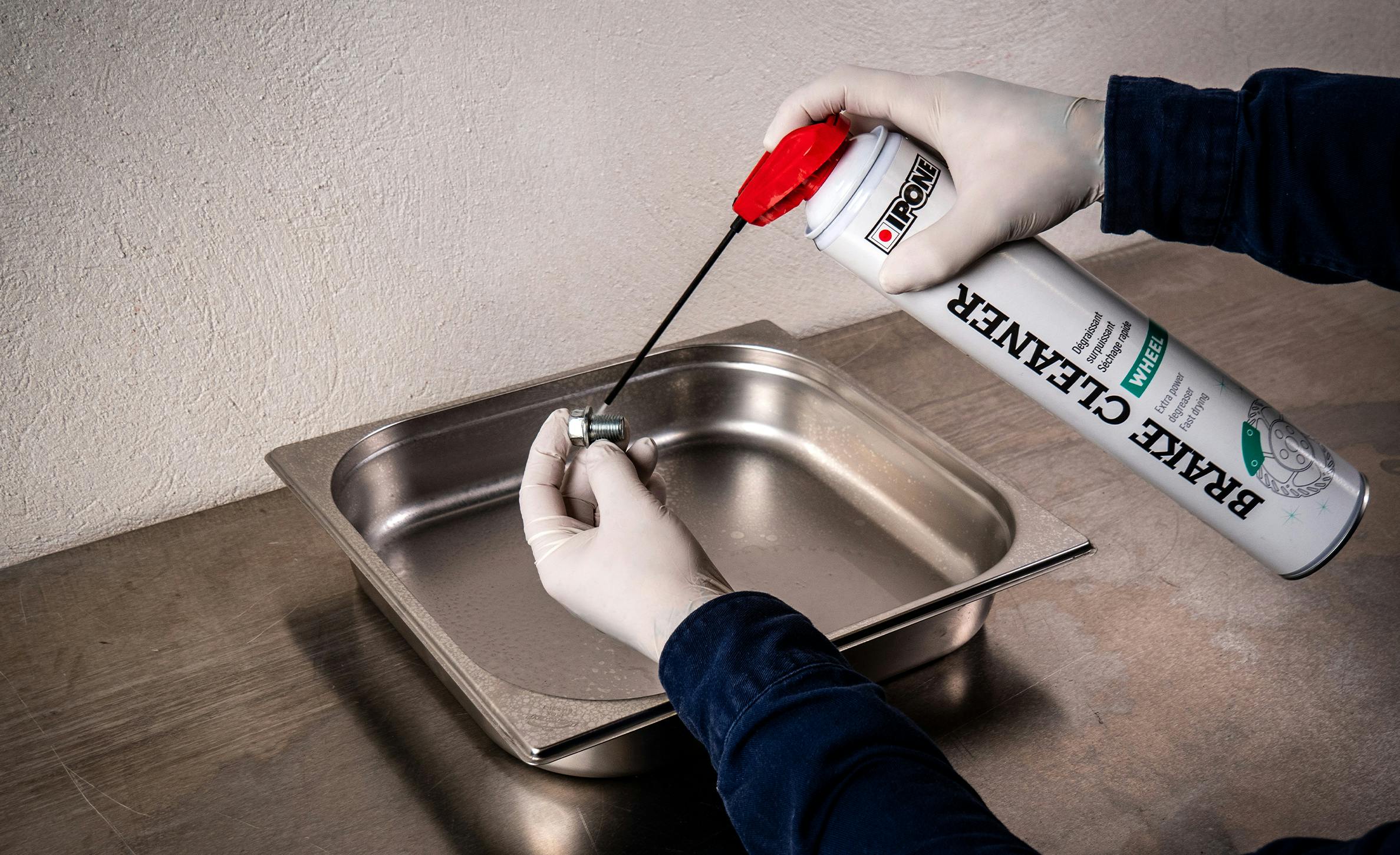

2b. Clean the drain plug
Clean the drain plug with Brake Cleaner and a cloth
Replace the sealing washer and tighten the drain plug.

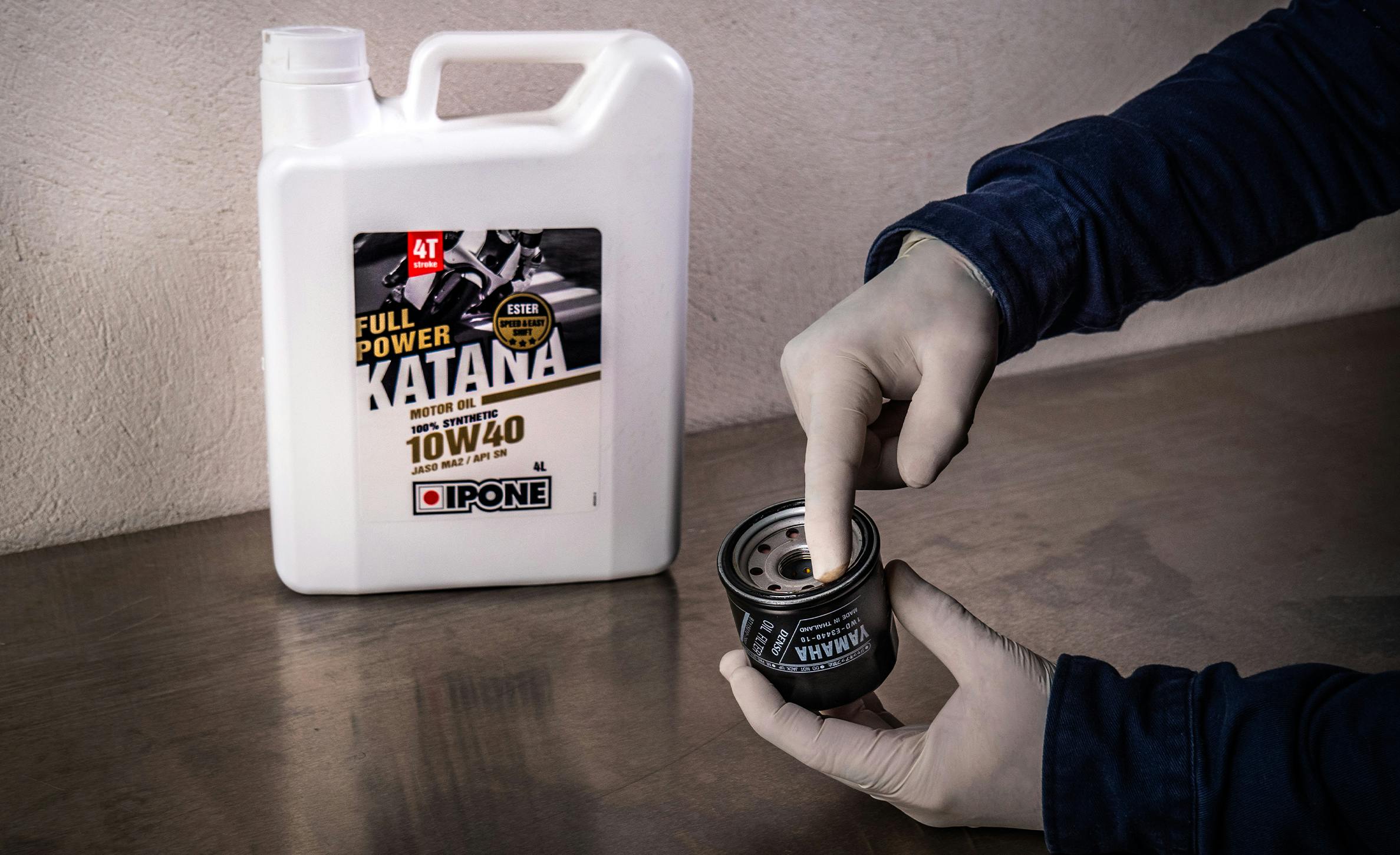

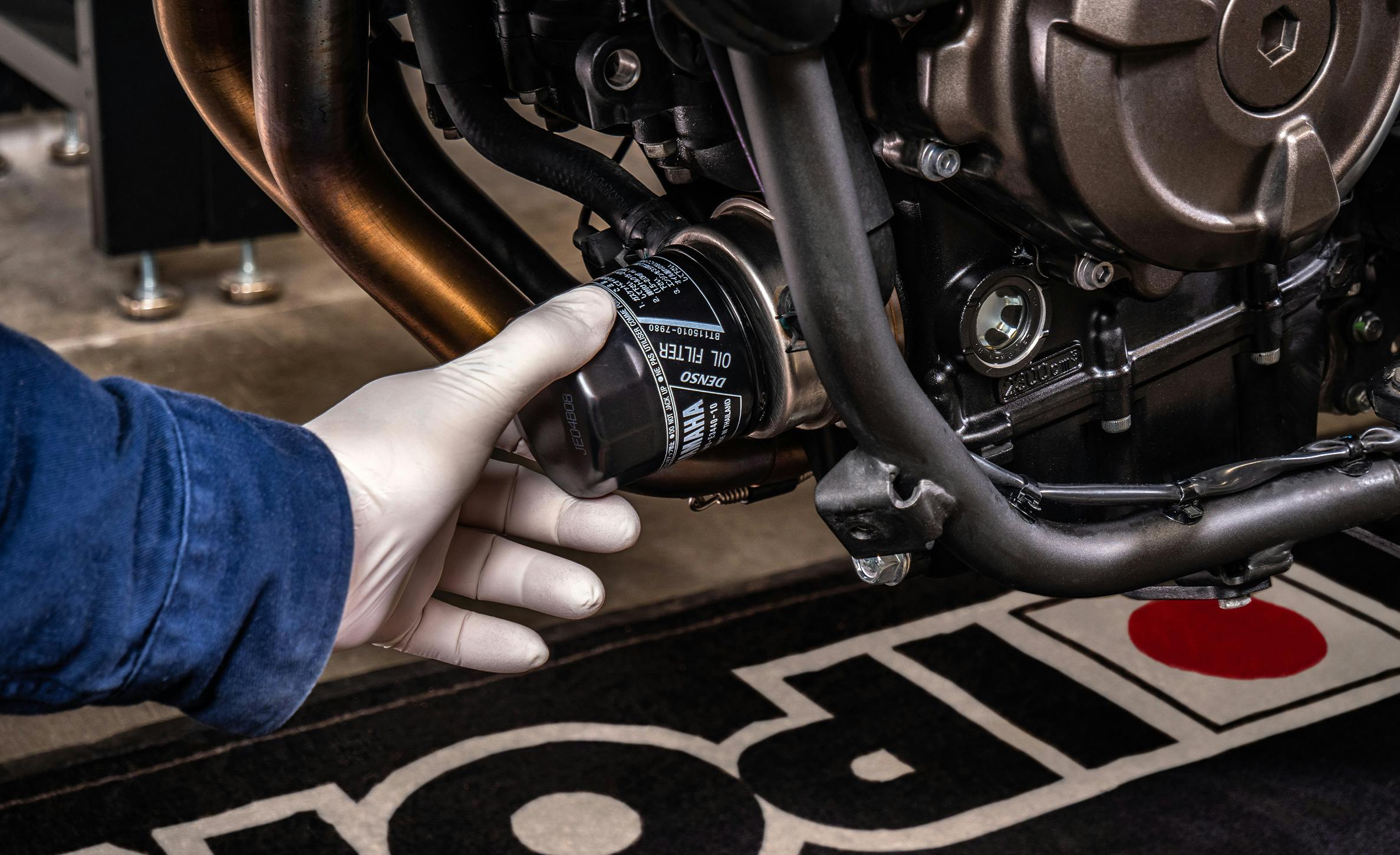

2c. Replace the oil filter
Before installing the new filter, wipe the oil filter span with a cloth and apply a thing layer of new oil on the O-ring. The new oil filter can now be installed and hand-tightened.
You can now close and set aside the drain pan to avoid shoving it and putting used oil everywhere. You will no longer need it!
3. ADD THE NEW OIL

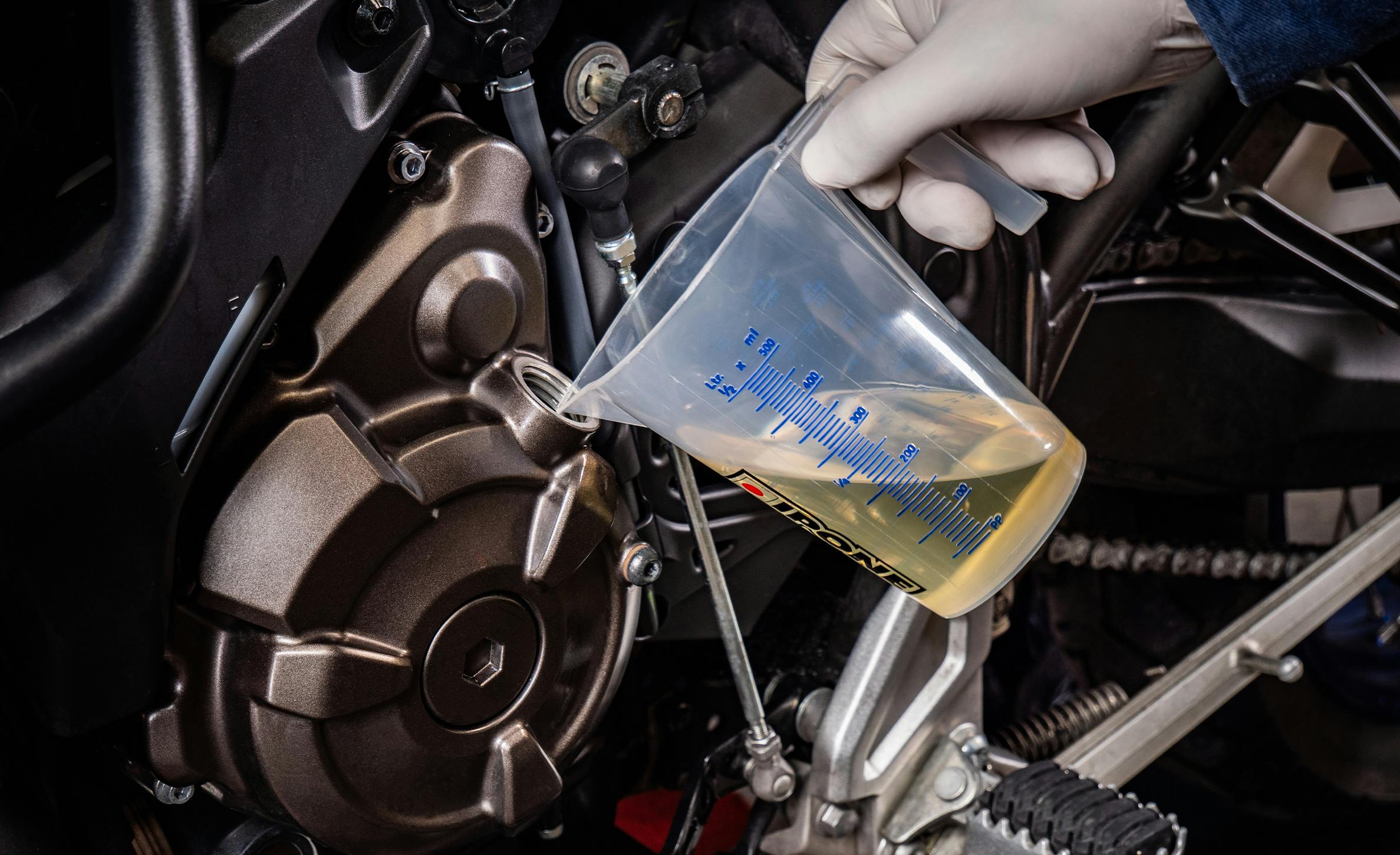

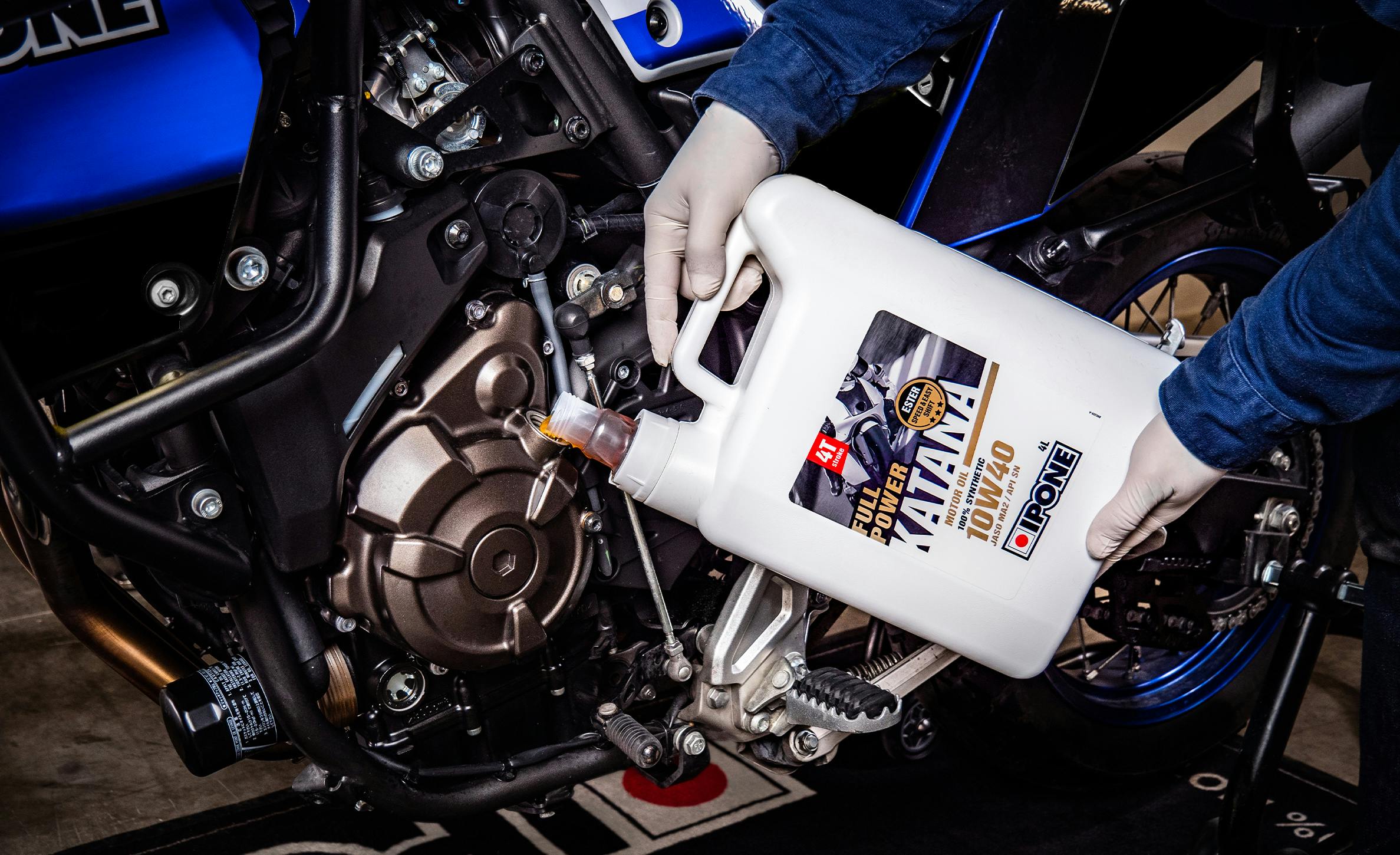

3a. Top up
Make sure the bike is straight to top it up. Fill the oil pan with the oil suitable for your bike.
Be careful, do not exceed the maximum level indicated and stop just below. Overfilling this tank can seriously damage the engine by creating overpressure.
Run the engine for 2 to 3 minutes so that the oil can be well distributed into the engine. Turn it off, wait a few minutes to allow the oil to cool down and fill the pan again still without exceeding the maximum level.
Put the oil filler cap back on, wipe down any oil residue that might have spilled on the bike and around the oil filter. Use Brake Cleaner and a cloth!

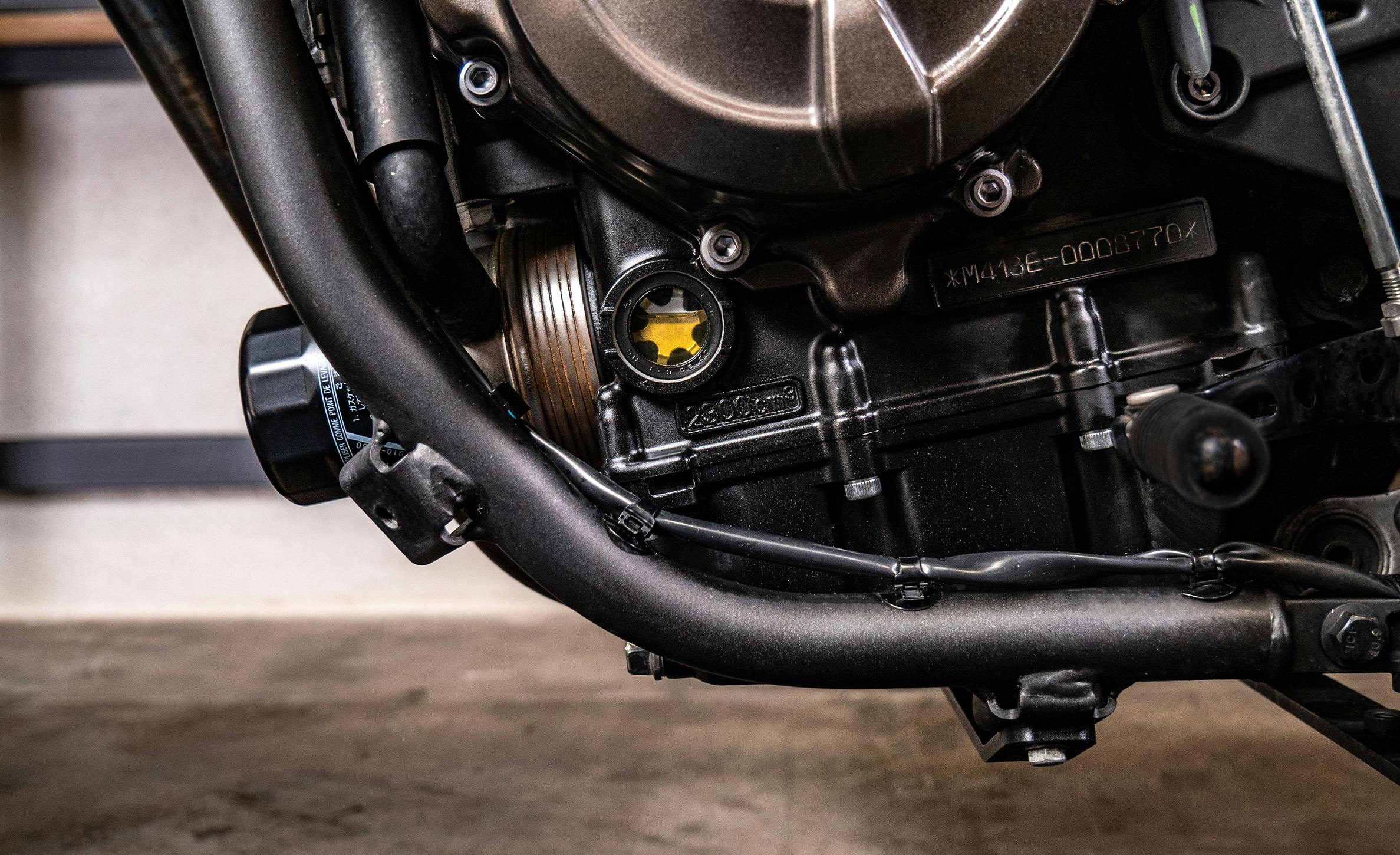

CHECK THE LEVELS DAILY
Often check the oil level and make sure that it never goes below the minimum level indicated, if there is not enough oil you risk an engine failure.
Think about recycling!
Do not empty the used oil in a sink or toilet. The used oil is recycled at a waste disposal site. Our drain pan is super convenient for this, it is equipped with a handle to facilitate transport. And you don’t risk spilling it everywhere!
